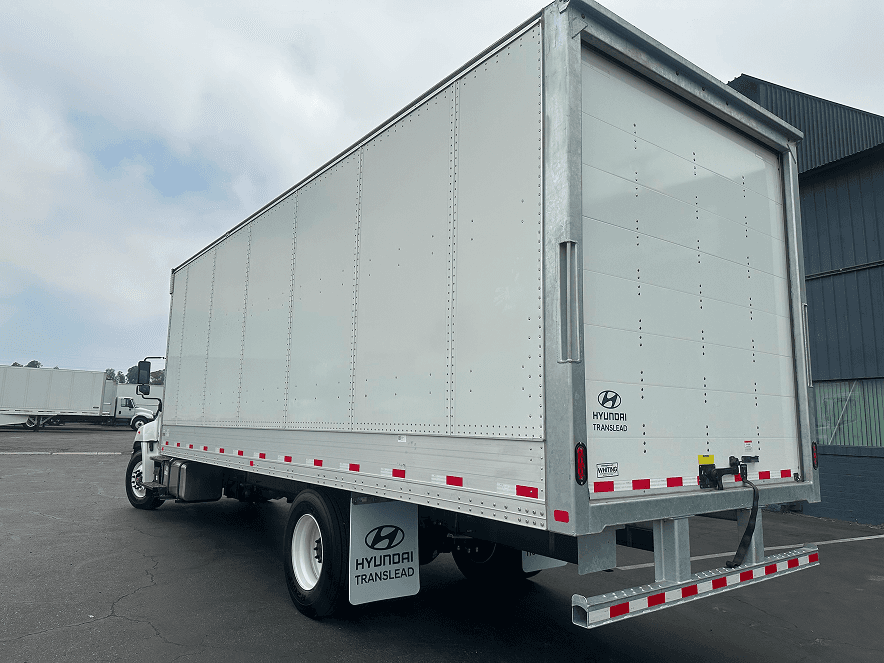

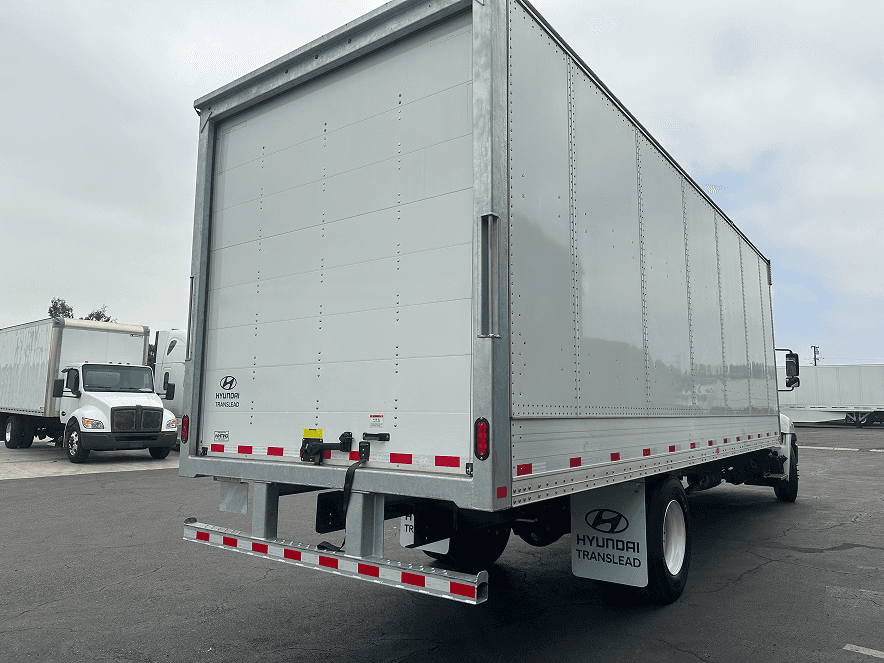

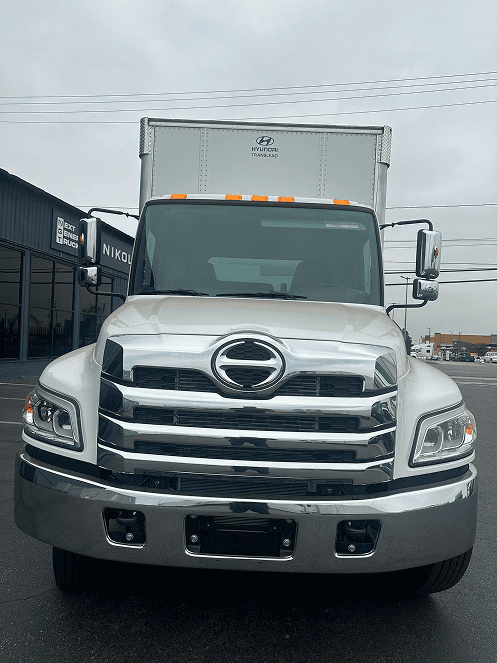

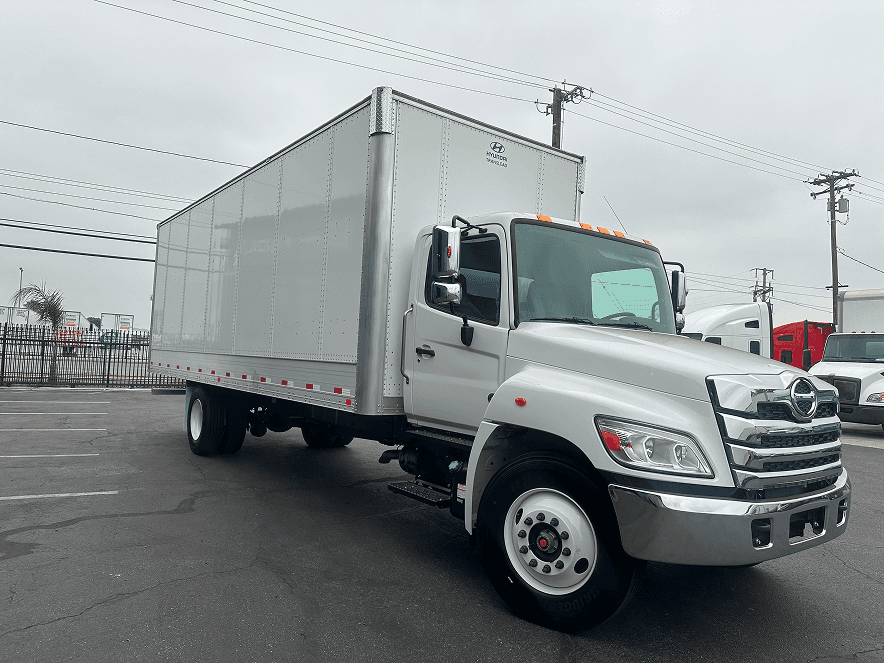

Hyundai Translead Anza Truck Body
Hyundai Translead has redefined the truck body supply chain with Anza. Hyundai’s Anza Truck Body is ideal for last mile deliveries and rental fleets, and is the right solution for many industries and applications.
Specs
Dimensions
Length: Exterior 26′ 5-5/8″ / Interior 26′
Width: Exterior 102.36″ / Interior 101.5″ (above side scuff, wall-to-wall)
Height: Exterior 108-3/4″ (not including base rails) / Interior 102″ nominal
Standard Weight: 4,400 lbs (not including mounting accessories)
Core Construction
Base: 3″ I-Beam crossmembers on 16″ centers; 12″ centers on last 4′

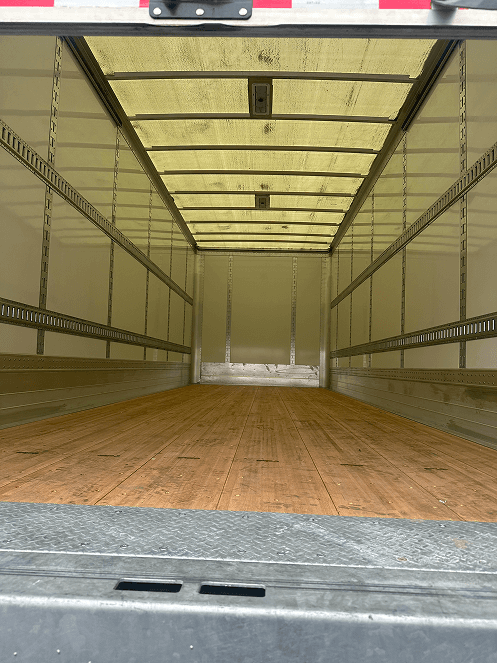

Floor: 1-1/8″ domestic laminated hardwood
Side Sheets: 0.24″ composite panels with pre-painted white, high-tensile galvanized steel inner and outer sheets
Side Stiffeners: 19GA high-tensile galvanized steel at 48.5″ centers
Roof: One-piece translucent panel
Roof Bows: Aluminum anti-snag bows at 24″ centers
Front Wall: Composite panel with dual A-Track at 48.5″ centers
Rear Frame: Hot-dipped galvanized high-tensile steel with low-profile header, forged corner angles, recessed lights, and 10GA galvanized door track protector
Rear Door: Whiting roll-up door, 1/4″ premium plate, pre-painted white
Scuff Band: 16″ exposed height, extended scuff with exterior ribs for increased stiffness and scrape protection
Performance & Durability Benefits
Hot-Dipped Galvanization (Standard)
The only truck body in its class offering a full Anti-Corrosion Package with hot-dipped galvanization for superior longevity and rust protection.
Quality Manufacturing
Built using premium components and precise fabrication to ensure durability, reliability, and consistent performance.
Flexibility
Bodies can be shipped as multiple kits, streamlining delivery and final assembly for greater efficiency.
Repairability
Independent side panels and proven trailer-grade components make repairs fast and cost-effective, reducing downtime.
Reliability
Constructed with trusted Hyundai Translead components including composite panels and an extended bottom rail for long-lasting dependability.
Customization
Multiple configurations available, including load securement solutions, liftgates, and ramp options tailored to meet operational needs.
Advanced Options
Vertical Logistics: E-tracks, wood slats, and d-rings on 24″ or 48″ centers
Recessed Grab Handles: Inset for impact protection
Ramps: Factory or field-installed ramp options
Aluminum Roof: Optional aluminum roof upgrade
